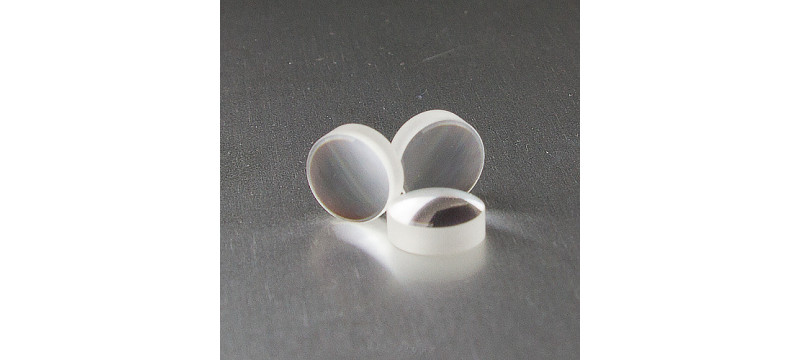

Laser Collimator Lens - Dia. 5.0mm ~ <8.0mm
Hot
The laser collimator lens, also known as laser collimators or optical collimating lenses, are precision optical components designed to focus or collimate laser beams or produce parallel beams at infinity with minimal parallax. These lenses come in various diameters and focal lengths to fit diverse optical mechanisms. In general, a longer focal length provides better laser beam collimation due to the Gaussian beam nature of laser diodes.
Below is a list of laser collimator lenses with diameters between 5mm and 8mm.
| Product ID | Dia. |
Focal Length | N.A. |
Div. Angle |
BFL |
Buy | |
| CO5FL10 | 5.0 | 10.0 | 0.20 | 22° | 8.95 |  |
 |
| CO5.4FL4.5 | 5.4 | 4.5 | 0.47 | 50° | 3.08 | |
|
| CO5.5FL8.8 | 5.5 | 8.8 | 0.25 | 28° | 7.35 | |
|
| CO6FL8.1 | 6.0 | 8.1 | 0.28 | 31° | 7.6 | |
|
| CO6.3FL3.1 | 6.33 | 3.1 | 0.67 | 67° | 1.76 | |
|
| CO6.3FL3.9 | 6.33 | 3.9 | 0.50 | 53° | 2.7 | |
|
| CO6.3FL4 | 6.33 | 4.0 | 0.62 | 62° | 2.8 | |
|
| CO6.3FL13.9 | 6.33 | 13.9 | 0.18 | 20° | 12.1 | |
|
| CO6.35FL6.4 | 6.35 | 6.4 | 0.43 | 46.5° | 4.7 | |
|
| CO6.35FL10 | 6.35 | 10.0 | 0.27 | 30° | 8.3 | |
|
| CO6.5FL7.5 | 6.5 | 7.5 | 0.39 | 42° | 5.96 | |
|
| CO6.5FL8.9 | 6.5 | 8.9 | 0.30 | 33° | 7.55 | |
|
| CO6.5FL12 | 6.5 | 12.0 | 0.21 | 23.5° | 10.55 | |
|
| CO6.5FL15.3 | 6.5 | 15.3 | 0.16 | 18° | 13.9 | |
|
| CO6.5FL18.4 | 6.5 | 18.4 | 0.15 | 17° | 17.1 | |
|
| CO7.2FL6.2 | 7.2 | 6.2 | 0.40 | 43° | 3.44 | |
|
| CO7.2FL11 | 7.2 | 11.0 | 0.28 | 31° | 7.9 | |
|
unit : mm
Note: We provide optional AR coating of 400-700nm, 500-850nm and 600-1050nm. For customized coating, please contact us.
Outline dimensions： |
|
Laser Collimator Lens - Dia. 5.0mm ~ <8.0mm
Starting From C$5.6
2 or more C$13.9
10 or more C$11.1
50 or more C$9.0
200 or more C$7.2
1000 or more C$5.6
- Deliver Time: Available, 7~21 Days
- Product ID: Collimating Lens - Dia. 5.0mm ~ <8.0mm
