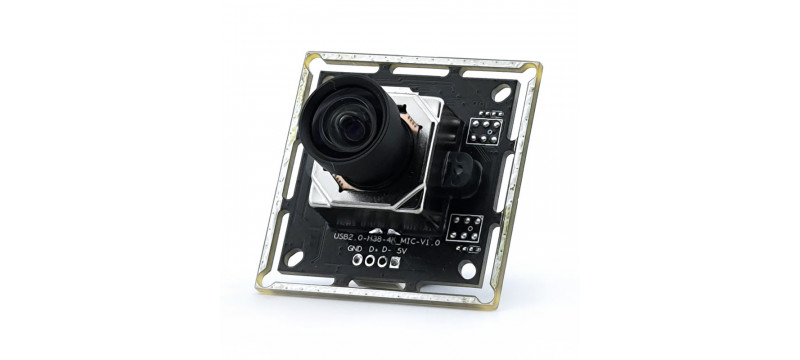

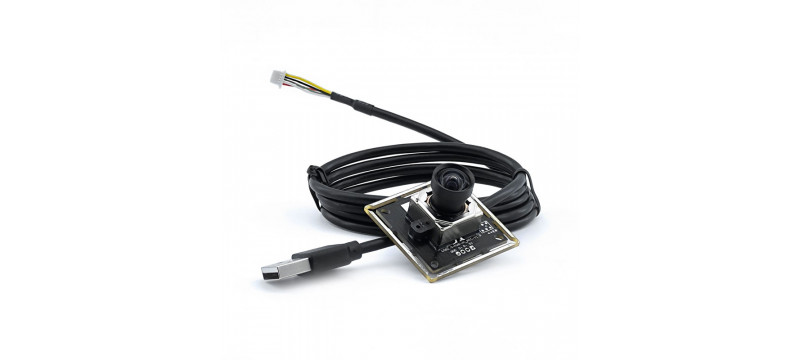

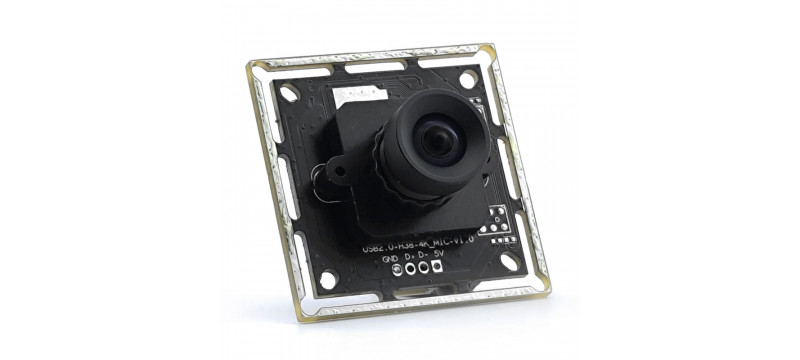

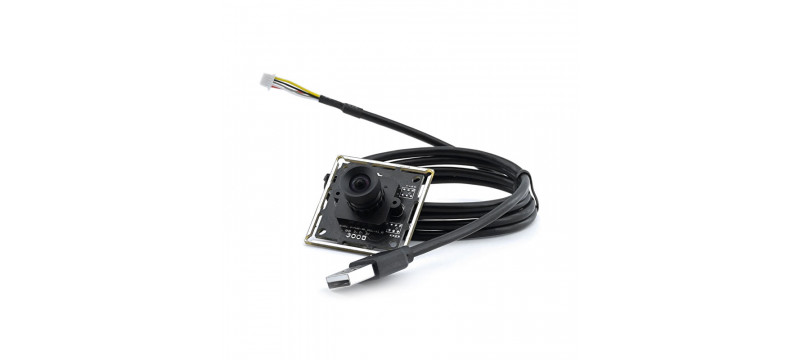

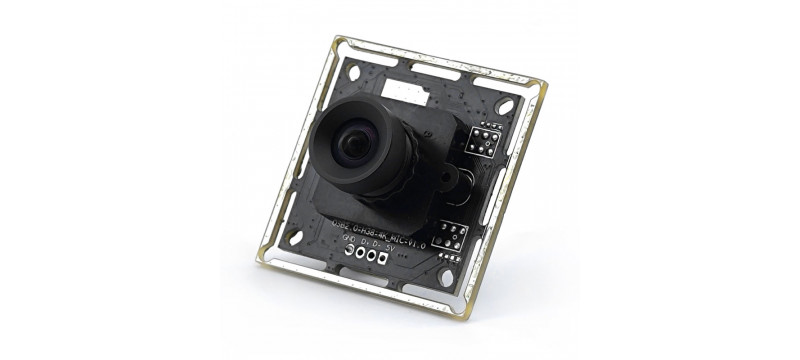

CM8M30M12Q2 is a high-performance 8MP USB camera module featuring the Sony IMX415 CMOS sensor with HDR, high sensitivity, and low noise enabled by STARVIS™ technology.


Technical Information：
Product ID  CM8M30M12Q2
Sensor  IMX415
Image Size  1/2.8 inch
Image Pixels & Resolution  8M / 3840(H) x 2160(V)
Image Formats  MJPEG / YUY2(YUYV)
Frame Rate  3840x2160 MJPEG@30fps
 1920x1080 MJPEG@30fps
Max S/N Ratio  72dB
Min. illumination  0.01 lux
Sensitivity  650mV/lux-sec@550nm
Shutter Type  Electronic rolling shutter /
 Frame exposure
Connecting Port
  USB2.0 High Speed
Plug & Play  UVC(USB Video Class) support
Operating Temperature  -20° ~ 70°C
Operating Voltage  DC5V
Operating Current  236mA
PCBA Dimensions  38x38mm(Compatible 32x32mm)
Operating System Request  WinXP/Vista/Win7/Win8/Win10/Win11
 Linux with UVC(above 2.6.26)
 MAC-OS X 10.4.8 or later
 Android 4.0 or above with UVC
8M Low illumination USB Camera Module – CM8M30M12Q2

FEATURES

8M(3840x2160) Image Sensor IMX415
Dimensions: Square 38X38mm (Compatible 32X32mm）
M12 S-mount Lens Type
- Standard: FL3.2mm Fixed Focus
- Option: FL 1.8 / 2.5 / 4.5 / 6.2 / 8.0 / 10.0
- Autofocus: FOV(H)90°, FOV(H)120°
UVC support, Plug & Play for Windows and Linux
